FLX100 FLX70 FLX40 RDM SDM Carbon Fiber Windsurfing Mast
FLX100 FLX70 FLX40 RDM SDM Carbon Fiber Windsurfing Mast FLX100 FLX70 FLX40 RDM SDM Carbon Fiber Windsurfing Mast FLX100 FLX70 FLX40 RDM SDM Carbon Fiber Windsurfing Mast FLX100 FLX70 FLX40 RDM SDM Carbon Fiber Windsurfing Mast

FLX100 FLX70 FLX40 RDM SDM Carbon Fiber Windsurfing Mast

Product Details:
Place of Origin: China
Brand Name: Huaiying
Model Number: CFWM-FLX
Payment & Shipping Terms:
Minimum Order Quantity: 10m
Price: Negotiation
Packaging Details: carton box~FLX100 FLX70 FLX40 Heavy Duty Carbon Fiber RDM/SDM Windsurfing Mast
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000meter per month
Contact Now

Detail Information
Process: Winding Color: Black
Raw Material: Carbon Fiber Tow, Expoy Resin Length: Customized
Origin: China Name: Carbon Fiber Windsurfing Mast
Highlight:

SDM Carbon Fiber Windsurfing Mast

,

RDM Carbon Fiber Windsurfing Mast

,

Carbon Fiber Tow Windsurfing Mast

Product Description

FLX100 FLX70 FLX40 Heavy Duty Carbon Fiber RDM/SDM Windsurfing Mast



The masts for windsurfing are generally divided into 3 levels: FLX100, FLX70 and FLX40. All masts are made by winding process to ensure precise control of the yarn preload and perfect resin infiltration of the yarn (avoiding Defects caused by air bubbles that may be generated between layers). All masts can precisely control the curvature and curve to suit all brands of sails on the market. The high-grade mast has a high carbon fiber content to reduce the weight of the mast and significantly improve the reaction speed and overall performance.



RDM masts are compatible with the curves of SDM masts. Choosing an RDM mast will bring a soft, longer-lasting and comfortable feeling. Choosing the SDM mast will have a faster response speed, a more stable and precise feeling. For competitive sails, we recommend using SDM masts.



Mast parameter table

Description MAST SPECIFICATION
Weight (g) IMCS Curve - Tip % Curve - Base % Carbon Content %
Kids 240 1050 6 76 63 0
Kids 290 1350 8 75 64 0
FLX40 SDM 400 2200 19 78 62 40
FLX40 SDM 430 2400 21 78 62 40
FLX40 SDM 460 2700 25 78 62 40
FLX40 SDM 490 3000 29 78 62 40
FLX40 RDM 370 1900 16 76 61 40
FLX40 RDM 400 2300 19 76 61 40
FLX40 RDM 430 2600 21 76 61 40
FLX70 SDM 400 1800 19 78 62 70
FLX70 SDM 430 2000 21 78 62 70
FLX70 SDM 460 2200 25 78 62 70
FLX70 SDM 490 2500 29 78 62 70
FLX70 RDM 370 1800 16 76 61 70
FLX70 RDM 400 2150 19 76 61 70
FLX70 RDM 430 2400 21 76 61 70
FLX100 SDM 400 1400 19 78 62 100
FLX100 SDM 430 1600 21 78 62 100
FLX100 SDM 460 1800 25 78 62 100
FLX100 SDM 490 2000 29 78 62 100
FLX100 SDM 520 2300 33 78 62 100
FLX100 SDM 550 2600 39 78 62 100
FLX100 RDM 340 1150 15 76 61 100
FLX100 RDM 370 1300 16 76 61 100
FLX100 RDM 400 1600 19 76 61 100
FLX100 RDM 430 1900 21 76 61 100
RS: X 490 2150 29 77 62 90
RS: X 520 2400 33 77 62 90
RS: One 460 2100 25 76.7 61.5 60



Compression test

To simulate the force situation when the sail is assembled, fix the two ends and squeeze the mast. After reaching the corresponding curve of the sail, continue to increase the load until the mast breaks. Get the damage load, compared with the corresponding standard.



FLX100 FLX70 FLX40 RDM SDM Carbon Fiber Windsurfing Mast 0FLX100 FLX70 FLX40 RDM SDM Carbon Fiber Windsurfing Mast 1



FLX100 FLX70 FLX40 RDM SDM Carbon Fiber Windsurfing Mast 2



Bending test

To get the curvature, support the mast at both ends and hang with a weight of 30 kgs in the middle, then bend is tested in the middle and the other six positions which are equally distributed. Obtain the IMCS value of the mast and draw a standard bending curve for easy comparison with the sail curve.



FLX100 FLX70 FLX40 RDM SDM Carbon Fiber Windsurfing Mast 3

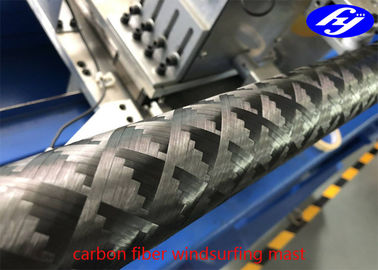

The carbon fiber winding forming process is a forming process in which the winding machine uses a computer preset program to accurately compile a group of yarns on a pre-designed mold to form a composite material product with a higher degree of mechanization. The advantage of the winding process is that the pretension of the yarn can be maintained throughout the molding process, so that all carbon fibers can share the stress of the product at the same time, thereby better exerting the performance of this new material. Another advantage of the winding process is that it can match different resin systems for carbon fiber according to the requirements of special working conditions, so as to meet some special requirements such as flame retardant, high temperature resistance and strong corrosion resistance.

The mechanized production method can improve the production efficiency and reduce the production cost while ensuring the stable product quality. According to the needs of different customers, we design different layers and winding methods to make your pipe fittings not only have super performance but also have a unique appearance.

If you refuse to become mediocre and monotonous, please choose winding, because winding makes your products vivid!



There are 2 kinds of winding process as below:



1) Dry winding

The main raw material for making carbon fiber tubes by dry winding is carbon fiber prepreg tow. The raw material supplier will accurately control the resin content of the tow when making the prepreg tow, so the quality stability of the manufactured product is relatively easy control. This production method has high efficiency, and the production environment is clean and hygienic, but the raw material price is higher and the storage conditions are higher.



FLX100 FLX70 FLX40 RDM SDM Carbon Fiber Windsurfing Mast 4



2) Wet winding

This method is mainly to soak the carbon fiber filament tow in the resin first, then wind the soaked tow continuously on a stainless-steel core mold through the control of tension to make a core mold tube.

This method is the mainstream way of making high-performance carbon fiber tubes. The main advantages are: economical process, which can effectively reduce production costs; the internal sealing effect of the product is good, the internal air is extruded, and the porosity of the product is greatly reduced; the fiber layout is balanced Smooth; resin lubricated, can reduce carbon fiber wear during production; production speed is fast. The disadvantages are: there is a certain waste of resin raw materials; the accuracy of the resin content is difficult to control accurately; the environmental friendliness is low.



FLX100 FLX70 FLX40 RDM SDM Carbon Fiber Windsurfing Mast 5



Advantages:
1. Light weight and strong strenght
2. Excellent durance.
3. Corrosion resistance
4. Excellent planeness
5. Nice appearance



Why choose us:

  • Over 8 years rich experiances in the field of

carbon/aramid/UHMWPE fibers and relative products;

  • Having over 50 firm&faithful suppliers

which offer good prices and stable good quality;

  • Providing constructive suggestions on

the products to client and help them to find a total solution.



We supply competitive price, high quanlity and satisfied service!

You will find we are the right supplier you are looking for!



RFQ:

Q1: Can I have a sample order?

A: Yes, you are welcome place a sample order to test and check quality your side before you place the bulk order. Mixed samples are also acceptable. Please let us know your courier account number to deliver it freight collected.



Q2: What is the lead time of an order?

A: For our standard product, sample order only needs 1-3 days, mass production usual needs 10-15 days but it’s according to the order quantity.



Q3: Do you have any MOQ limit?

A: Yes, we have different MOQ limit according to the type of product you want, but usually MOQ is small.



Q4: Can you accept mixed batch of different products?

A: Yes, we support different products mixed.



Q5: How do you ship the goods?

A: We can ship the goods by sea, air, train or courier.



Q6: Can you pack the goods on pallet or in crate?

A: Yes, we can provide such kind of package to facilitate loading and unloading the goods by forklift.



Q7: Can you print our logo on the outer package?

A: Yes, we can, but it’s only for big order, for small order, we just print it on the paper and paste it on the package.



Q8: Can we visit your company and factory?

A: Yes, you are welcome, if you need the airport pick up and hotel reservation, please let us know once you decide the itinerary.



Q9: What is your payment terms?

A: As usual, you are suggested to send the payment by t.t, 100% t.t in advance for order value less than $5000, for bigger order, it’s 30% deposit and 70% t.t against B/L copy.
